Safe Haskell | None |
---|---|

Language | Haskell98 |

This module provides functions for decomposing a unitary *n*×*n*
operator into one- and two-level unitaries.

The algorithm is adapted from Section 4.5.1 of Nielsen and
Chuang. In addition to what is described in Nielsen and Chuang, our
algorithm produces two-level operators that can be decomposed using
only two Euler angles. The algorithm produces at most *n*(*n*−1)/2
two-level operators of type *R*sub /z/*R*sub /x/, as well
as *n* one-level operators of type *e*^{iθ}. Therefore, the
decomposition of a unitary *n*×*n* operator yields *n*^{2} real
parameters, which is optimal.

- data ElementaryRot a
- = ERot_zx a a Index Index
- | ERot_phase a Index

- matrix_of_elementary :: (Ring a, Floating a, Nat n) => ElementaryRot a -> Matrix n n (Cplx a)
- matrix_of_elementaries :: (Ring a, Floating a, Nat n) => [ElementaryRot a] -> Matrix n n (Cplx a)
- rotation_decomposition :: (Eq a, Fractional a, Floating a, Adjoint a, ArcTan2 a, Nat n) => Matrix n n (Cplx a) -> [ElementaryRot a]
- twolevel_matrix_of_matrix :: (Ring a, Nat n) => Matrix Two Two a -> Index -> Index -> Matrix n n a
- get_phase :: ArcTan2 a => Matrix n n (Cplx a) -> Index -> ElementaryRot a
- rowop :: (Eq a, Fractional a, Floating a, Adjoint a, ArcTan2 a, Nat n) => Matrix n n (Cplx a) -> (Index, Index) -> (Matrix n n (Cplx a), [ElementaryRot a])
- random_unitary :: (RandomGen g, Nat n, Floating a, Random a) => g -> Matrix n n (Cplx a)
- test :: IO ()

# Elementary rotations

data ElementaryRot a Source #

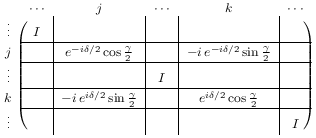

An elementary rotation is either a combined *x*- and
*z*-rotation, applied at indices *j* and *k*, or a phase change
applied at index *j*.

`ERot_phase`

θ*j*represents the operator*e*^{iθ}applied to level*j*.

Note: when we use a list of `ElementaryRot`

s to express a sequence of
operators, the operators are meant to be applied right-to-left,
i.e., as in the mathematical notation for matrix multiplication.
This is the opposite of the quantum circuit notation.

ERot_zx a a Index Index | |

ERot_phase a Index |

Show a => Show (ElementaryRot a) Source # | |

matrix_of_elementary :: (Ring a, Floating a, Nat n) => ElementaryRot a -> Matrix n n (Cplx a) Source #

Convert a symbolic elementary rotation to a concrete matrix.

matrix_of_elementaries :: (Ring a, Floating a, Nat n) => [ElementaryRot a] -> Matrix n n (Cplx a) Source #

Convert a sequence of elementary rotations to an *n*×*n*-matrix.

# Decomposition into elementary rotations

rotation_decomposition :: (Eq a, Fractional a, Floating a, Adjoint a, ArcTan2 a, Nat n) => Matrix n n (Cplx a) -> [ElementaryRot a] Source #

Convert an *n*×*n*-matrix to a sequence of elementary rotations.

Note: the list of elementary rotations will be returned in right-to-left order, i.e., as in the mathematical notation for matrix multiplication. This is the opposite of the quantum circuit notation.

# Auxiliary functions

twolevel_matrix_of_matrix :: (Ring a, Nat n) => Matrix Two Two a -> Index -> Index -> Matrix n n a Source #

Construct a two-level *n*×*n*-matrix from a given 2×2-matrix and
indices *j* and *k*.

get_phase :: ArcTan2 a => Matrix n n (Cplx a) -> Index -> ElementaryRot a Source #

Extract the phase of the *j*th diagonal entry of the given
matrix.

rowop :: (Eq a, Fractional a, Floating a, Adjoint a, ArcTan2 a, Nat n) => Matrix n n (Cplx a) -> (Index, Index) -> (Matrix n n (Cplx a), [ElementaryRot a]) Source #

Perform a two-level operation on rows *j* and *k* of a matrix *U*,
such that the resulting matrix has a 0 in the (*j*,*k*)-position.
Return the inverse of the two-level operation used, as well as the
updated matrix.
