Tutorial, Quick start or Demo for 'simple-expr' package.
Synopsis
Quick start
>>>
import Prelude (String)
>>>
import Debug.SimpleExpr (variable, unaryFunc, binaryFunc)
>>>
import NumHask (sin, (**))
Let us build an example symbolic expression for
\[ f(x) := \sin x^2 \]
It can be done as follows
>>>
x = variable "x"
>>>
sin (x ** 2)
sin(x^2)
where terms x
and sin (x ** 2)
have type SimpleExpr
.
It is just a syntactic tree where the role of leaves is played by
variables and numbers.
We used
variable
::
String
->
SimpleExpr
to build the expression for variable x
.
For the sine function we attracted a predefined term
sin
::
SimpleExpr
->
SimpleExpr
.
As well we can define a custom function using unaryFunc
and binary functoins using binaryFunc
as follows
>>>
f = unaryFunc "f"
>>>
(-*-) = binaryFunc "-*-"
>>>
f x -*- f x
f(x)-*-f(x)
There is also a typeclass Expr
that includes SimpleExpr
as well as it's tuples and lists.
Expression simplification
>>>
import Prelude (($))
>>>
import Debug.SimpleExpr (variable, simplify)
>>>
import NumHask ((+), (-), (*))
We can try to simplify an expressions with the aid of quite a primitive simplify
method
>>>
x = variable "x"
>>>
simplify $ (x + 0) * 1 - x * (3 - 2)
0
Visualisation
>>>
import Debug.SimpleExpr (variable, unaryFunc)
>>>
import Debug.SimpleExpr.GraphUtils (plotExpr, plotDGraphPng, exprToGraph)
>>>
import NumHask (exp, (*), (+), (-))
There is a built-in tool to visualize expression that attracts graphite package to transform expressions to graphs and graphviz to render the images.
Consider first a simple composition for two functions f
and g
>>>
x = variable "x"
>>>
f = unaryFunc "f"
>>>
g = unaryFunc "g"
>>>
expr = g (f x)
>>>
expr
g(f(x))
This symbolic expression can be plotted by
plotExpr
::
Expr
d => d ->
IO
ThreadId
like
plotExpr expr
To save the image as a file use, for example,
plotDGraphPng
(
exprToGraph
expr) pathToFile
,
where
exprToGraph
::
Expr
d => d ->
DGraph
String
()
transforms an expression to a graph and
plotDGraphPng
::
DGraph
v e ->
FilePath
->
IO
FilePath
.
plats the graph.

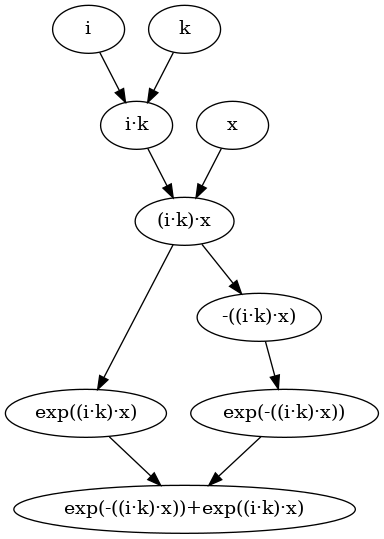

Consider now a more representative example
\[ e^{i k x} + e^{ - i k x} \]
>>>
:{
x, k, i, expr :: SimpleExpr x = variable "x" k = variable "k" i = variable "i" expr = exp (i * k * x) + exp (-(i * k * x)) :}
