Graphics.Rasterific

Main module of Rasterific, an Haskell rasterization engine.

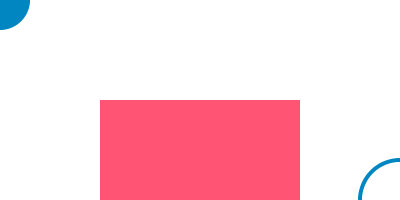

Creating an image is rather simple, here is a simple example of a drawing and saving it in a PNG file:

 import Codec.Picture( PixelRGBA8( .. ), writePng )
 import Graphics.Rasterific

 main :: IO ()
 main = do
   let white = PixelRGBA8 255 255 255 255
       drawColor = PixelRGBA8 0 0x86 0xc1 255
       recColor = PixelRGBA8 0xFF 0x53 0x73 255
       img = renderDrawing 400 200 white $
          withTexture (uniformTexture drawColor) $ do
             fill $ circle (V2 0 0) 30
             stroke 4 JoinRound (CapRound, CapRound) $
                    circle (V2 400 200) 40
             withTexture (uniformTexture recColor) .
                    fill $ rectangle (V2 100 100) 200 100

   writePng "yourimage.png" img

The coordinate system is the picture classic one, with the origin in the upper left corner; with the y axis growing to the bottom and the x axis growing to the right:

Rasterization command

fill :: [Primitive] -> Drawing px ()

Fill some geometry. The geometry should be looping, ie. the last point of the last primitive should be equal to the first point of the first primitive.

The primitive should be connected.

 fill $ circle (V2 100 100) 75

withTexture :: Texture px -> Drawing px () -> Drawing px ()

Define the texture applyied to all the children draw call.

 withTexture (uniformTexture $ PixelRGBA8 0 0x86 0xc1 255) $ do
     fill $ circle (V2 50 50) 20
     fill $ circle (V2 100 100) 20
     withTexture (uniformTexture $ PixelRGBA8 0xFF 0x53 0x73 255)
          $ circle (V2 150 150) 20

withClipping

Arguments

:: (forall innerPixel. Drawing innerPixel ())

The clipping path

-> Drawing px ()

The actual geometry to clip

-> Drawing px ()

Draw some geometry using a clipping path.

 withClipping (fill $ circle (V2 100 100) 75) $
     mapM_ (stroke 7 JoinRound (CapRound, CapRound))
       [line (V2 0 yf) (V2 200 (yf + 10))
                      | y <- [5 :: Int, 17 .. 200]
                      , let yf = fromIntegral y ]

stroke

Arguments

:: Float

Stroke width

-> Join

Which kind of join will be used

-> (Cap, Cap)

Start and end capping.

-> [Primitive]

List of elements to render

-> Drawing px ()

Will stroke geometry with a given stroke width. The elements should be connected

 stroke 5 JoinRound (CapRound, CapRound) $ circle (V2 100 100) 75

dashedStroke

Arguments

:: DashPattern

Dashing pattern to use for stroking

-> Float

Stroke width

-> Join

Which kind of join will be used

-> (Cap, Cap)

Start and end capping.

-> [Primitive]

List of elements to render

-> Drawing px ()

With stroke geometry with a given stroke width, using a dash pattern.

 dashedStroke [5, 10, 5] 3 JoinRound (CapRound, CapStraight 0)
        [line (V2 0 100) (V2 200 100)]

printTextAt

Arguments

:: Font

Drawing font

-> Int

font Point size

-> Point

Baseline begining position

-> String

String to print

-> Drawing px ()

Draw a string at a given position. Text printing imply loading a font, there is no default font (yet). Below an example of font rendering using a font installed on Microsoft Windows.

 import Graphics.Text.TrueType( loadFontFile )
 import Codec.Picture( PixelRGBA8( .. ), writePng )
 import Graphics.Rasterific

 main :: IO ()
 main = do
   fontErr <- loadFontFile "C:/Windows/Fonts/arial.ttf"
   case fontErr of
     Left err -> putStrLn err
     Right font ->
       writePng "text_example.png" .
           renderDrawing 300 70 (PixelRGBA8 255 255 255 255)
               . withTexture (uniformTexture $ PixelRGBA8 0 0 0 255) $
                       printTextAt font 12 (V2 20 40) "A simple text test!"

You can use any texture, like a gradient while rendering text.

strokeDebug :: (Pixel px, Modulable (PixelBaseComponent px)) => Texture px -> Texture px -> Float -> Join -> (Cap, Cap) -> [Primitive] -> Drawing px ()

Internal debug function

renderDrawing

Arguments

:: forall px . (Pixel px, Pixel (PixelBaseComponent px), Modulable (PixelBaseComponent px), PixelBaseComponent (PixelBaseComponent px) ~ PixelBaseComponent px)

=> Int

Rendering width

-> Int

Rendering height

-> px

Background color

-> Drawing px ()

Rendering action

-> Image px

Function to call in order to start the image creation. Tested pixels type are PixelRGBA8 and Pixel8, pixel types in other colorspace will probably produce weird results.

pathToPrimitives :: Path -> [Primitive]

Transform a path description into a list of renderable primitives.

Rasterization types

type Texture px = SamplerRepeat -> Float -> Float -> px

A texture is just a function which given pixel coordinate give back a pixel. The float coordinate type allow for transformations to happen in the pixel space.

type Drawing px a = Free (DrawCommand px) a

Monad used to record the drawing actions.

class Ord a => Modulable a

Typeclass intented at pixel value modulation. May be throwed out soon.

Instances

Modulable Word8

Geometry description

data V2 a

A 2-dimensional vector

>>> pure 1 :: V2 Int
V2 1 1

>>> V2 1 2 + V2 3 4
V2 4 6

>>> V2 1 2 * V2 3 4
V2 3 8

>>> sum (V2 1 2)
3

Constructors

V2 !a !a

Instances

Monad V2

Functor V2

Typeable1 V2

Applicative V2

Foldable V2

Traversable V2

Generic1 V2

Distributive V2

R2 V2

R1 V2

Core V2

Metric V2

Additive V2

Traversable1 V2

Foldable1 V2

Apply V2

Bind V2

Eq a => Eq (V2 a)

Fractional a => Fractional (V2 a)

Data a => Data (V2 a)

Num a => Num (V2 a)

Ord a => Ord (V2 a)

Read a => Read (V2 a)

Show a => Show (V2 a)

Ix a => Ix (V2 a)

Generic (V2 a)

Storable a => Storable (V2 a)

Epsilon a => Epsilon (V2 a)

type Point = V2 Float

Represent a point

type Vector = V2 Float

Represent a vector

data CubicBezier

Describe a cubic bezier spline, described using 4 points.

 stroke 4 JoinRound (CapRound, CapRound) $
    [CubicBezierPrim $ CubicBezier (V2 0 10) (V2 205 250)
                                   (V2 (-10) 250) (V2 160 35)]

Constructors

CubicBezier

Fields

_cBezierX0 :: !Point

Origin point, the spline will pass through it.

_cBezierX1 :: !Point

First control point of the cubic bezier curve.

_cBezierX2 :: !Point

Second control point of the cubic bezier curve.

_cBezierX3 :: !Point

End point of the cubic bezier curve

Instances

Eq CubicBezier

Show CubicBezier

Transformable CubicBezier

data Line

Describe a simple 2D line between two points.

 fill $ LinePrim <$> [ Line (V2 10 10) (V2 190 10)
                     , Line (V2 190 10) (V2 95 170)
                     , Line (V2 95 170) (V2 10 10)]

Constructors

Line

Fields

_lineX0 :: !Point

Origin point

_lineX1 :: !Point

End point

Instances

Eq Line

Show Line

Transformable Line

data Bezier

Describe a quadratic bezier spline, described using 3 points.

 fill $ BezierPrim <$> [Bezier (V2 10 10) (V2 200 50) (V2 200 100)
                       ,Bezier (V2 200 100) (V2 150 200) (V2 120 175)
                       ,Bezier (V2 120 175) (V2 30 100) (V2 10 10)]

Constructors

Bezier

Fields

_bezierX0 :: !Point

Origin points, the spline will pass through it.

_bezierX1 :: !Point

Control point, the spline won't pass on it.

_bezierX2 :: !Point

End point, the spline will pass through it.

Instances

Eq Bezier

Show Bezier

Transformable Bezier

data Primitive

This datatype gather all the renderable primitives, they are kept separated otherwise to allow specialization on some specific algorithms. You can mix the different primitives in a single call :

 fill
    [ CubicBezierPrim $ CubicBezier (V2 50 20) (V2 90 60)
                                    (V2  5 100) (V2 50 140)
    , LinePrim $ Line (V2 50 140) (V2 120 80)
    , LinePrim $ Line (V2 120 80) (V2 50 20) ]

Constructors

LinePrim !Line

Primitive used for lines

BezierPrim !Bezier

Primitive used for quadratic beziers curves

CubicBezierPrim !CubicBezier

Primitive used for cubic bezier curve

Instances

Eq Primitive

Show Primitive

Transformable Primitive

data Path

Describe a path in a way similar to many graphical packages, using a pen position in memory and reusing it for the next move For example the example from Primitive could be rewritten:

 fill . pathToPrimitives $ Path (V2 50 20) True
    [ PathCubicBezierCurveTo (V2 90 60) (V2  5 100) (V2 50 140)
    , PathLineTo (V2 120 80) ]

Constructors

Path

Fields

_pathOriginPoint :: Point

Origin of the point, equivalent to the first move command.

_pathClose :: Bool

Tell if we must close the path.

_pathCommand :: [PathCommand]

List of commands in the path

Instances

Eq Path

Show Path

data PathCommand

Actions to create a path

Constructors

PathLineTo Point

Draw a line from the current point to another point

PathQuadraticBezierCurveTo Point Point

Draw a quadratic bezier curve from the current point through the control point to the end point.

PathCubicBezierCurveTo Point Point Point

Draw a cubic bezier curve using 2 control points.

Instances

Eq PathCommand

Show PathCommand

class Transformable a where

This typeclass is there to help transform the geometry, by applying a transformation on every point of a geometric element.

Methods

transform :: (Point -> Point) -> a -> a

Apply a transformation function for every point in the element.

Instances

Transformable Primitive

Transformable CubicBezier

Transformable Bezier

Transformable Line

Helpers

line :: Point -> Point -> [Primitive]

Return a simple line ready to be stroked.

 stroke 17 JoinRound (CapRound, CapRound) $
     line (V2 10 10) (V2 180 170)

rectangle

Arguments

:: Point

Corner upper left

-> Float

Width in pixel

-> Float

Height in pixel

-> [Primitive]

Generate a list of primitive representing a rectangle

 fill $ rectangle (V2 30 30) 150 100

circle

Arguments

:: Point

Circle center in pixels

-> Float

Circle radius in pixels

-> [Primitive]

Generate a list of primitive representing a circle.

 fill $ circle (V2 100 100) 75

Geometry Helpers

clip

Arguments

:: Point

Minimum point (corner upper left)

-> Point

Maximum point (corner bottom right)

-> Primitive

Primitive to be clipped

-> [Primitive]

Clip the geometry to a rectangle.

bezierFromPath :: [Point] -> [Bezier]

Create a list of bezier patch from a list of points,

 bezierFromPath [a, b, c, d, e] == [Bezier a b c, Bezier c d e]
 bezierFromPath [a, b, c, d, e, f] == [Bezier a b c, Bezier c d e]
 bezierFromPath [a, b, c, d, e, f, g] ==
     [Bezier a b c, Bezier c d e, Bezier e f g]

lineFromPath :: [Point] -> [Line]

Transform a list a point to a list of lines

 lineFromPath [a, b, c, d] = [Line a b, Line b c, Line c d]

cubicBezierFromPath :: [Point] -> [CubicBezier]

Create a list of cubic bezier patch from a list of points.

 cubicBezierFromPath [a, b, c, d, e] = [CubicBezier a b c d]
 cubicBezierFromPath [a, b, c, d, e, f, g] =
    [CubicBezier a b c d, CubicBezier d e f g]

Rasterization control

data Join

Describe how to display the join of broken lines while stroking.

Constructors

JoinRound

Make a curved join.

JoinMiter Float

Make a mitter join. Value must be positive or null. Seems to make sense in [0;1] only

• Miter join with 0 :
• Miter join with 5 :

Instances

Eq Join

Show Join

data Cap

Describe how we will finish the stroking that don't loop.

Constructors

CapStraight Float

Create a straight caping on the stroke. Cap value should be positive and represent the distance from the end of curve to the actual cap

• cap straight with param 0 :
• cap straight with param 1 :

CapRound

Create a rounded caping on the stroke.

Instances

Eq Cap

Show Cap

data SamplerRepeat

Describe the behaviour of samplers and texturers when they are out of the bounds of image and/or gradient.

Constructors

SamplerPad

Will clamp (ie. repeat the last pixel) when out of bound

SamplerRepeat

Will loop on it's definition domain

SamplerReflect

Will loop inverting axises

Instances

Eq SamplerRepeat

Show SamplerRepeat

type DashPattern = [Float]

Dash pattern to use
