Main module of Rasterific, an Haskell rasterization engine.

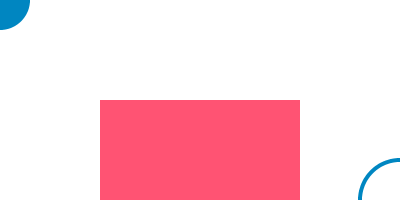

Creating an image is rather simple, here is a simple example of a drawing and saving it in a PNG file:

 import Codec.Picture( PixelRGBA8( .. ), writePng )
 import Graphics.Rasterific
 import Graphics.Rasterific.Texture

 main :: IO ()
 main = do
   let white = PixelRGBA8 255 255 255 255
       drawColor = PixelRGBA8 0 0x86 0xc1 255
       recColor = PixelRGBA8 0xFF 0x53 0x73 255
       img = renderDrawing 400 200 white $
          withTexture (uniformTexture drawColor) $ do
             fill $ circle (V2 0 0) 30
             stroke 4 JoinRound (CapRound, CapRound) $
                    circle (V2 400 200) 40
             withTexture (uniformTexture recColor) .
                    fill $ rectangle (V2 100 100) 200 100

   writePng "yourimage.png" img

The coordinate system is the picture classic one, with the origin in the upper left corner; with the y axis growing to the bottom and the x axis growing to the right:

Synopsis

Rasterization command

fill :: [Primitive] -> Drawing px ()Source

Fill some geometry. The geometry should be looping, ie. the last point of the last primitive should be equal to the first point of the first primitive.

The primitive should be connected.

 fill $ circle (V2 100 100) 75

fillWithMethod :: FillMethod -> [Primitive] -> Drawing px ()Source

This function let you choose how to fill the primitives in case of self intersection. See FillMethod documentation for more information.

withTexture :: Texture px -> Drawing px () -> Drawing px ()Source

Define the texture applyied to all the children draw call.

 withTexture (uniformTexture $ PixelRGBA8 0 0x86 0xc1 255) $ do
     fill $ circle (V2 50 50) 20
     fill $ circle (V2 100 100) 20
     withTexture (uniformTexture $ PixelRGBA8 0xFF 0x53 0x73 255)
          $ circle (V2 150 150) 20

withClipping Source

Arguments

:: (forall innerPixel. Drawing innerPixel ())	The clipping path
-> Drawing px ()	The actual geometry to clip
-> Drawing px ()

Draw some geometry using a clipping path.

 withClipping (fill $ circle (V2 100 100) 75) $
     mapM_ (stroke 7 JoinRound (CapRound, CapRound))
       [line (V2 0 yf) (V2 200 (yf + 10))
                      | y <- [5 :: Int, 17 .. 200]
                      , let yf = fromIntegral y ]

withTransformation :: Transformation -> Drawing px () -> Drawing px ()Source

Draw all the sub drawing commands using a transformation.

stroke Source

Arguments

:: Float	Stroke width
-> Join	Which kind of join will be used
-> (Cap, Cap)	Start and end capping.
-> [Primitive]	List of elements to render
-> Drawing px ()

Will stroke geometry with a given stroke width. The elements should be connected

 stroke 5 JoinRound (CapRound, CapRound) $ circle (V2 100 100) 75

dashedStroke Source

Arguments

:: DashPattern	Dashing pattern to use for stroking
-> Float	Stroke width
-> Join	Which kind of join will be used
-> (Cap, Cap)	Start and end capping.
-> [Primitive]	List of elements to render
-> Drawing px ()

With stroke geometry with a given stroke width, using a dash pattern.

 dashedStroke [5, 10, 5] 3 JoinRound (CapRound, CapStraight 0)
        [line (V2 0 100) (V2 200 100)]

dashedStrokeWithOffset Source

Arguments

:: Float	Starting offset
-> DashPattern	Dashing pattern to use for stroking
-> Float	Stroke width
-> Join	Which kind of join will be used
-> (Cap, Cap)	Start and end capping.
-> [Primitive]	List of elements to render
-> Drawing px ()

With stroke geometry with a given stroke width, using a dash pattern. The offset is there to specify the starting point into the pattern, the value can be negative.

 dashedStrokeWithOffset 3 [5, 10, 5] 3 JoinRound (CapRound, CapStraight 0)
        [line (V2 0 100) (V2 200 100)]

printTextAt Source

Arguments

:: Font	Drawing font
-> Int	font Point size
-> Point	Baseline begining position
-> String	String to print
-> Drawing px ()

Draw a string at a given position. Text printing imply loading a font, there is no default font (yet). Below an example of font rendering using a font installed on Microsoft Windows.

 import Graphics.Text.TrueType( loadFontFile )
 import Codec.Picture( PixelRGBA8( .. ), writePng )
 import Graphics.Rasterific
 import Graphics.Rasterific.Texture

 main :: IO ()
 main = do
   fontErr <- loadFontFile "C:/Windows/Fonts/arial.ttf"
   case fontErr of
     Left err -> putStrLn err
     Right font ->
       writePng "text_example.png" .
           renderDrawing 300 70 (PixelRGBA8 255 255 255 255)
               . withTexture (uniformTexture $ PixelRGBA8 0 0 0 255) $
                       printTextAt font 12 (V2 20 40) "A simple text test!"

You can use any texture, like a gradient while rendering text.

renderDrawing Source

Arguments

:: forall px . (Pixel px, Pixel (PixelBaseComponent px), Modulable (PixelBaseComponent px), PixelBaseComponent (PixelBaseComponent px) ~ PixelBaseComponent px)
=> Int	Rendering width
-> Int	Rendering height
-> px	Background color
-> Drawing px ()	Rendering action
-> Image px

Function to call in order to start the image creation. Tested pixels type are PixelRGBA8 and Pixel8, pixel types in other colorspace will probably produce weird results.

pathToPrimitives :: Path -> [Primitive]Source

Transform a path description into a list of renderable primitives.

Rasterization types

type Texture px = SamplerRepeat -> Float -> Float -> pxSource

A texture is just a function which given pixel coordinate give back a pixel. The float coordinate type allow for transformations to happen in the pixel space.

type Drawing px = Free (DrawCommand px)Source

Monad used to record the drawing actions.

class (Ord a, Num a) => Modulable a Source

Typeclass intented at pixel value modulation. May be throwed out soon.

Instances

Modulable Word8

Geometry description

data V2 a

A 2-dimensional vector

>>> pure 1 :: V2 Int
V2 1 1

>>> V2 1 2 + V2 3 4
V2 4 6

>>> V2 1 2 * V2 3 4
V2 3 8

>>> sum (V2 1 2)
3

Constructors

V2 !a !a

Instances

Monad V2
Functor V2
Typeable1 V2
Applicative V2
Foldable V2
Traversable V2
Generic1 V2
Distributive V2
Representable V2
Traversable1 V2
R2 V2
R1 V2
Metric V2
Additive V2
Foldable1 V2
Apply V2
Bind V2
PointFoldable Point
Transformable Point
Unbox a => Vector Vector (V2 a)
Unbox a => MVector MVector (V2 a)
Eq a => Eq (V2 a)
Fractional a => Fractional (V2 a)
Data a => Data (V2 a)
Num a => Num (V2 a)
Ord a => Ord (V2 a)
Read a => Read (V2 a)
Show a => Show (V2 a)
Ix a => Ix (V2 a)
Generic (V2 a)
Storable a => Storable (V2 a)
Unbox a => Unbox (V2 a)
Ixed (V2 a)
Epsilon a => Epsilon (V2 a)
FunctorWithIndex (E V2) V2
FoldableWithIndex (E V2) V2
TraversableWithIndex (E V2) V2

type Point = V2 Float Source

Represent a point

type Vector = V2 Float Source

Represent a vector

data CubicBezier Source

Describe a cubic bezier spline, described using 4 points.

 stroke 4 JoinRound (CapRound, CapRound) $
    [CubicBezierPrim $ CubicBezier (V2 0 10) (V2 205 250)
                                   (V2 (-10) 250) (V2 160 35)]

Constructors

CubicBezier
Fields _cBezierX0 :: !Point Origin point, the spline will pass through it. _cBezierX1 :: !Point First control point of the cubic bezier curve. _cBezierX2 :: !Point Second control point of the cubic bezier curve. _cBezierX3 :: !Point End point of the cubic bezier curve

Instances

Eq CubicBezier
Show CubicBezier
PointFoldable CubicBezier
Transformable CubicBezier

data Line Source

Describe a simple 2D line between two points.

 fill $ LinePrim <$> [ Line (V2 10 10) (V2 190 10)
                     , Line (V2 190 10) (V2 95 170)
                     , Line (V2 95 170) (V2 10 10)]

Constructors

Line
Fields _lineX0 :: !Point Origin point _lineX1 :: !Point End point

Instances

Eq Line
Show Line
PointFoldable Line
Transformable Line

data Bezier Source

Describe a quadratic bezier spline, described using 3 points.

 fill $ BezierPrim <$> [Bezier (V2 10 10) (V2 200 50) (V2 200 100)
                       ,Bezier (V2 200 100) (V2 150 200) (V2 120 175)
                       ,Bezier (V2 120 175) (V2 30 100) (V2 10 10)]

Constructors

Bezier
Fields _bezierX0 :: !Point Origin points, the spline will pass through it. _bezierX1 :: !Point Control point, the spline won't pass on it. _bezierX2 :: !Point End point, the spline will pass through it.

Instances

Eq Bezier
Show Bezier
PointFoldable Bezier
Transformable Bezier

data Primitive Source

This datatype gather all the renderable primitives, they are kept separated otherwise to allow specialization on some specific algorithms. You can mix the different primitives in a single call :

 fill
    [ CubicBezierPrim $ CubicBezier (V2 50 20) (V2 90 60)
                                    (V2  5 100) (V2 50 140)
    , LinePrim $ Line (V2 50 140) (V2 120 80)
    , LinePrim $ Line (V2 120 80) (V2 50 20) ]

Constructors

LinePrim !Line	Primitive used for lines
BezierPrim !Bezier	Primitive used for quadratic beziers curves
CubicBezierPrim !CubicBezier	Primitive used for cubic bezier curve

Instances

Eq Primitive
Show Primitive
PointFoldable Primitive
Transformable Primitive

data Path Source

Describe a path in a way similar to many graphical packages, using a pen position in memory and reusing it for the next move For example the example from Primitive could be rewritten:

 fill . pathToPrimitives $ Path (V2 50 20) True
    [ PathCubicBezierCurveTo (V2 90 60) (V2  5 100) (V2 50 140)
    , PathLineTo (V2 120 80) ]

Constructors

Path
Fields _pathOriginPoint :: Point Origin of the point, equivalent to the first move command. _pathClose :: Bool Tell if we must close the path. _pathCommand :: [PathCommand] List of commands in the path

Instances

Eq Path
Show Path
PointFoldable Path
Transformable Path

data PathCommand Source

Actions to create a path

Constructors

PathLineTo Point	Draw a line from the current point to another point
PathQuadraticBezierCurveTo Point Point	Draw a quadratic bezier curve from the current point through the control point to the end point.
PathCubicBezierCurveTo Point Point Point	Draw a cubic bezier curve using 2 control points.

Instances

Eq PathCommand
Show PathCommand
PointFoldable PathCommand
Transformable PathCommand

class Transformable a whereSource

This typeclass is there to help transform the geometry, by applying a transformation on every point of a geometric element.

Methods

transform :: (Point -> Point) -> a -> aSource

Apply a transformation function for every point in the element.

Instances

Transformable PathCommand
Transformable Path
Transformable Primitive
Transformable CubicBezier
Transformable Bezier
Transformable Line
Transformable Point
(Functor f, Transformable a) => Transformable (f a)

class PointFoldable a whereSource

Typeclass helper gathering all the points of a given geometry.

Methods

foldPoints :: (b -> Point -> b) -> b -> a -> bSource

Fold an accumulator on all the points of the primitive.

Instances

PointFoldable PathCommand
PointFoldable Path
PointFoldable Primitive
PointFoldable CubicBezier
PointFoldable Bezier
PointFoldable Line
PointFoldable Point
(Foldable f, PointFoldable a) => PointFoldable (f a)

Helpers

line :: Point -> Point -> [Primitive]Source

Return a simple line ready to be stroked.

 stroke 17 JoinRound (CapRound, CapRound) $
     line (V2 10 10) (V2 180 170)

rectangle Source

Arguments

:: Point	Corner upper left
-> Float	Width in pixel
-> Float	Height in pixel
-> [Primitive]

Generate a list of primitive representing a rectangle

 fill $ rectangle (V2 30 30) 150 100

roundedRectangle Source

Arguments

:: Point	Corner upper left
-> Float	Width in pixel
-> Float	Height in pixel.
-> Float	Radius along the x axis of the rounded corner. In pixel.
-> Float	Radius along the y axis of the rounded corner. In pixel.
-> [Primitive]

Generate a list of primitive representing a rectangle with rounded corner.

 fill $ roundedRectangle (V2 10 10) 150 150 20 10

circle Source

Arguments

:: Point	Circle center in pixels
-> Float	Circle radius in pixels
-> [Primitive]

Generate a list of primitive representing a circle.

 fill $ circle (V2 100 100) 75

ellipse :: Point -> Float -> Float -> [Primitive]Source

Generate a list of primitive representing an ellipse.

 fill $ ellipse (V2 100 100) 75 30

polyline :: [Point] -> [Primitive]Source

Generate a strokable line out of points list. Just an helper around lineFromPath.

 stroke 4 JoinRound (CapRound, CapRound) $
    polyline [V2 10 10, V2 100 70, V2 190 190]

polygon :: [Point] -> [Primitive]Source

Generate a fillable polygon out of points list. Similar to the polyline function, but close the path.

 fill $ polygon [V2 30 30, V2 100 70, V2 80 170]

drawImageAtSize Source

Arguments

:: (Pixel px, Modulable (PixelBaseComponent px))
=> Image px	Image to be drawn
-> StrokeWidth	Border size, drawn with current texture.
-> Point	Position of the corner upper left of the image.
-> Float	Width of the drawn image
-> Float	Height of the drawn image
-> Drawing px ()

Draw an image with the desired size

 drawImageAtSize textureImage 2 (V2 30 30) 128 128

drawImage Source

Arguments

:: (Pixel px, Modulable (PixelBaseComponent px))
=> Image px	Image to be drawn
-> StrokeWidth	Border size, drawn with current texture.
-> Point	Position of the corner upper left of the image.
-> Drawing px ()

Simply draw an image into the canvas. Take into account any previous transformation performed on the geometry.

 drawImage textureImage 0 (V2 30 30)

Geometry Helpers

clip Source

Arguments

:: Point	Minimum point (corner upper left)
-> Point	Maximum point (corner bottom right)
-> Primitive	Primitive to be clipped
-> [Primitive]

Clip the geometry to a rectangle.

bezierFromPath :: [Point] -> [Bezier]Source

Create a list of bezier patch from a list of points,

 bezierFromPath [a, b, c, d, e] == [Bezier a b c, Bezier c d e]
 bezierFromPath [a, b, c, d, e, f] == [Bezier a b c, Bezier c d e]
 bezierFromPath [a, b, c, d, e, f, g] ==
     [Bezier a b c, Bezier c d e, Bezier e f g]

lineFromPath :: [Point] -> [Line]Source

Transform a list a point to a list of lines

 lineFromPath [a, b, c, d] = [Line a b, Line b c, Line c d]

cubicBezierFromPath :: [Point] -> [CubicBezier]Source

Create a list of cubic bezier patch from a list of points.

 cubicBezierFromPath [a, b, c, d, e] = [CubicBezier a b c d]
 cubicBezierFromPath [a, b, c, d, e, f, g] =
    [CubicBezier a b c d, CubicBezier d e f g]

Rasterization control

data Join Source

Describe how to display the join of broken lines while stroking.

Constructors

JoinRound

Make a curved join.

JoinMiter Float

Make a mitter join. Value must be positive or null. Seems to make sense in [0;1] only

Miter join with 0 :
Miter join with 5 :

Instances

Eq Join
Show Join

data Cap Source

Describe how we will finish the stroking that don't loop.

Constructors

CapStraight Float

Create a straight caping on the stroke. Cap value should be positive and represent the distance from the end of curve to the actual cap

cap straight with param 0 :
cap straight with param 1 :

CapRound

Create a rounded caping on the stroke.

Instances

Eq Cap
Show Cap

data SamplerRepeat Source

Describe the behaviour of samplers and texturers when they are out of the bounds of image and/or gradient.

Constructors

SamplerPad	Will clamp (ie. repeat the last pixel) when out of bound
SamplerRepeat	Will loop on it's definition domain
SamplerReflect	Will loop inverting axises

Instances

Enum SamplerRepeat
Eq SamplerRepeat
Show SamplerRepeat

data FillMethod Source

Tell how to fill complex shapes when there is self intersections. If the filling mode is not specified, then it's the FillWinding method which is used.

The examples used are produced with the following function:

 fillingSample :: FillMethod -> Drawing px ()
 fillingSample fillMethod = fillWithMethod fillMethod geometry where
   geometry = transform (applyTransformation $ scale 0.35 0.4
                                            <> translate (V2 (-80) (-180)))
            $ concatMap pathToPrimitives
      [ Path (V2 484 499) True
          [ PathCubicBezierCurveTo (V2 681 452) (V2 639 312) (V2 541 314)
          , PathCubicBezierCurveTo (V2 327 337) (V2 224 562) (V2 484 499)
          ]
      , Path (V2 136 377) True
          [ PathCubicBezierCurveTo (V2 244 253) (V2 424 420) (V2 357 489)
          , PathCubicBezierCurveTo (V2 302 582) (V2 47 481) (V2 136 377)
          ]
      , Path (V2 340 265) True
          [ PathCubicBezierCurveTo (V2 64 371) (V2 128 748) (V2 343 536)
          , PathCubicBezierCurveTo (V2 668 216) (V2 17 273) (V2 367 575)
          , PathCubicBezierCurveTo (V2 589 727) (V2 615 159) (V2 340 265)
          ]
      ]

Constructors

FillWinding

Also known as nonzero rule. To determine if a point falls inside the curve, you draw an imaginary line through that point. Next you will count how many times that line crosses the curve before it reaches that point. For every clockwise rotation, you subtract 1 and for every counter-clockwise rotation you add 1.

FillEvenOdd

This rule determines the insideness of a point on the canvas by drawing a ray from that point to infinity in any direction and counting the number of path segments from the given shape that the ray crosses. If this number is odd, the point is inside; if even, the point is outside.

Instances

Enum FillMethod
Eq FillMethod
Show FillMethod

type DashPattern = [Float]Source

Dash pattern to use

Debugging helper

dumpDrawing :: Show px => Drawing px () -> String Source

This function will spit out drawing instructions to help debugging.

The outputted code looks like Haskell, but there is no guarantee that it is compilable.
