A shader program is composed of two cooperating parts: the vertex program and the fragment program. The vertex program is executed once for each vertex. The fragment program is executed once for each pixel covered by a rasterized primitive (actually this is more complicated but close enough).

The inputs to the vertex program are:

• a vertex (see Graphics.GL.Low.VAO)
• uniforms

The outputs of the vertex program are:

• clip space position of the vertex, gl_Position
• any number of variables matching inputs to the fragment program
• (if rendering a point, then you can set gl_PointSize)

The inputs to the fragment program are:

• the previously mentioned outputs of the vertex program (interpolated)
• the window position of the pixel, gl_FragCoord
• samplers (see Graphics.GL.Low.Texture)
• uniforms
• gl_FrontFacing, true if pixel is part of a front facing triangle
• (if rendering a point, then you can use gl_PointCoord)

The outputs of the fragment program are:

• a color (this is more complicated in reality but close enough)
• the depth of the pixel, gl_FragDepth, which will default to the pixel's Z.

newProgram

Arguments

:: String

vertex shader source code

-> String

fragment shader source code

-> IO Program

Compile the code for a vertex shader and a fragment shader, then link them into a new program. If the compiler or linker fails it will throw a ProgramError.

newProgramSafe :: String -> String -> IO (Either ProgramError Program)

Same as newProgram but does not throw exceptions.

useProgram :: Program -> IO ()

Install a program into the rendering pipeline. Replaces the program already in use, if any.

deleteProgram :: Program -> IO ()

Delete a program.

setUniform1f :: String -> [Float] -> IO ()

setUniform2f :: String -> [V2 Float] -> IO ()

setUniform3f :: String -> [V3 Float] -> IO ()

setUniform4f :: String -> [V4 Float] -> IO ()

setUniform1i :: String -> [Int] -> IO ()

setUniform2i :: String -> [V2 Int] -> IO ()

setUniform3i :: String -> [V3 Int] -> IO ()

setUniform4i :: String -> [V4 Int] -> IO ()

setUniform44 :: String -> [M44 Float] -> IO ()

setUniform33 :: String -> [M33 Float] -> IO ()

setUniform22 :: String -> [M22 Float] -> IO ()

data Program

Handle to a shader program.

Instances

Show Program

data ProgramError

The error message emitted by the driver when shader compilation or linkage fails.

Constructors

VertexShaderError String

FragmentShaderError String

LinkError String

Instances

Show ProgramError

Exception ProgramError

Typeable * ProgramError

Example

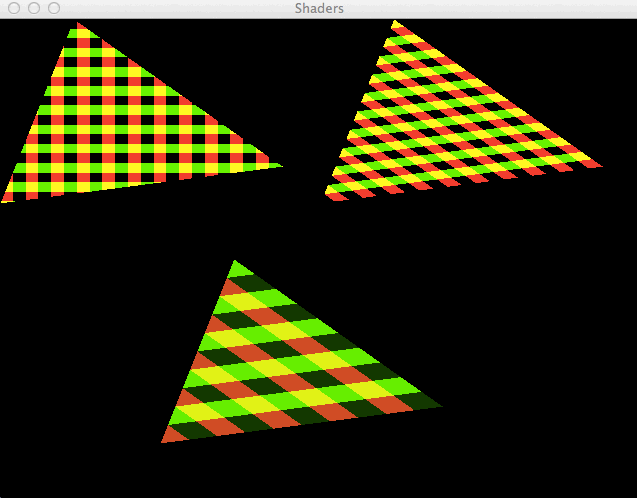

This example renders three differently-shaded triangles. The window coordinates, the interpolated location on the triangle, and the elapsed time are used to color the triangles respectively.

module Main where

import Control.Monad.Loops (whileM_)
import Data.Functor ((<$>))
import qualified Data.Vector.Storable as V
import Data.Maybe (fromJust)

import qualified Graphics.UI.GLFW as GLFW
import Linear
import Graphics.GL.Low

main = do
  GLFW.init
  GLFW.windowHint (GLFW.WindowHint'ContextVersionMajor 3)
  GLFW.windowHint (GLFW.WindowHint'ContextVersionMinor 2)
  GLFW.windowHint (GLFW.WindowHint'OpenGLForwardCompat True)
  GLFW.windowHint (GLFW.WindowHint'OpenGLProfile GLFW.OpenGLProfile'Core)
  mwin <- GLFW.createWindow 640 480 "Shaders" Nothing Nothing
  case mwin of
    Nothing  -> putStrLn "createWindow failed"
    Just win -> do
      GLFW.makeContextCurrent (Just win)
      GLFW.swapInterval 1
      (vao, prog1, prog2, prog3) <- setup
      whileM_ (not <$> GLFW.windowShouldClose win) $ do
        GLFW.pollEvents
        t <- (realToFrac . fromJust) <$> GLFW.getTime
        draw vao prog1 prog2 prog3 t
        GLFW.swapBuffers win

setup = do
  vao <- newVAO
  bindVAO vao
  vsource <- readFile "shader.vert"
  fsource1 <- readFile "shader1.frag"
  fsource2 <- readFile "shader2.frag"
  fsource3 <- readFile "shader3.frag"
  prog1 <- newProgram vsource fsource1
  prog2 <- newProgram vsource fsource2
  prog3 <- newProgram vsource fsource3
  useProgram prog1
  let blob = V.fromList
        [ -0.4, -0.4, 0, 0
        ,  0,    0.4, 0, 1
        ,  0.4, -0.4, 1, 1] :: V.Vector Float
  vbo <- newVBO blob StaticDraw
  bindVBO vbo
  setVertexLayout
    [ Attrib "position" 2 GLFloat
    , Attrib "location" 2 GLFloat ]
  return (vao, prog1, prog2, prog3)

draw vao prog1 prog2 prog3 t = do
  clearColorBuffer (0,0,0)
  bindVAO vao
  drawThing prog1 t (V3 (-0.5)   0.5    0.0)
  drawThing prog2 t (V3   0.5    0.5    0.0)
  drawThing prog3 t (V3   0.0  (-0.5) (-0.0))

drawThing :: Program -> Float -> V3 Float -> IO ()
drawThing prog t shift = do
  let angle = t / 5
  let move = mkTransformation (axisAngle (V3 0 0 1) angle) shift
  useProgram prog
  setUniform1f "time" [t]
  setUniform44 "move" [transpose move]
  drawTriangles 3

Where the vertex shader is

#version 150
uniform mat4 move;
in vec2 position;
in vec2 location;
out vec2 Location;
void main()
{
    gl_Position = move * vec4(position, 0.0, 1.0);
    Location = location;
}

And the three fragment shaders are

#version 150
uniform float time;
in vec2 Location;
out vec4 outColor;
void main()
{
  float x = gl_FragCoord.x / 640;
  float y = gl_FragCoord.y / 480;
  outColor = vec4(
    fract(x*25) < 0.5 ? 1.0 : 0.0,
    fract(y*25) < 0.5 ? 1.0 : 0.0,
    0.0, 1.0
  );
}

#version 150
uniform float time;
in vec2 Location;
out vec4 outColor;
void main()
{
  outColor = vec4(
    fract(Location.x*10) < 0.5 ? 1.0 : 0.0,
    fract(Location.y*10) < 0.5 ? 1.0 : 0.0,
    0.0, 1.0
  );
}

#version 150
uniform float time;
in vec2 Location;
out vec4 outColor;
void main()
{
  float t = time;
  outColor = vec4(
    fract(Location.x*5) < 0.5 ? sin(t*3.145) : cos(t*4.567),
    fract(Location.y*5) < 0.5 ? cos(t*6.534) : sin(t*4.321),
    0.0, 1.0
  );
}
