When blending is enabled, colors written to the color buffer will be blended using a formula with the color already there. The three options for the formula are:

• S*s + D*d (FuncAdd, the default)
• S*s - D*d (FuncSubtract)
• D*d - S*s (FuncReverseSubtract)

where S and D are source and destination color components respectively. The factors s and d are computed blending factors which can depend on the alpha component of the source pixel, the destination pixel, or a specified constant color. See basicBlending for a common choice.

enableBlending :: Blending -> IO ()

Enable blending with the specified blending parameters.

disableBlending :: IO ()

Disable alpha blending.

basicBlending :: Blending

This blending configuration is suitable for ordinary alpha blending transparency effects.

Blending
  { sFactor   = BlendSourceAlpha
  , dFactor   = BlendOneMinusSourceAlpha
  , blendFunc = FuncAdd }

data Blending

Blending parameters.

Constructors

Blending

Fields

sFactor :: BlendFactor

dFactor :: BlendFactor

blendFunc :: BlendEquation

blendColor :: (Float, Float, Float, Float)

Instances

Default Blending

The default blending parameters have no effect if enabled. The result will be no blending effect.

data BlendFactor

Blending factors.

Constructors

BlendOne

BlendZero

BlendSourceColor

BlendOneMinusSourceColor

BlendDestColor

BlendOneMinusDestColor

BlendSourceAlpha

BlendOneMinusSourceAlpha

BlendDestAlpha

BlendOneMinusDestAlpha

BlendConstantColor

BlendOneMinusConstantColor

BlendConstantAlpha

BlendOneMinusConstantAlpha

Instances

Show BlendFactor

ToGL BlendFactor

data BlendEquation

Blending functions.

Constructors

FuncAdd

the default

FuncSubtract

FuncReverseSubtract

Instances

Show BlendEquation

Default BlendEquation

ToGL BlendEquation

Example

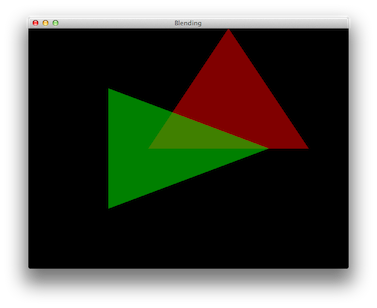

This program draws two half-transparent shapes. When you press a key they are rendered in the opposite order. This makes one appear as if it were in front of the other. Because the depth test (see Graphics.GL.Low.Depth) must be disabled while using this kind of blending, there may be significant overdraw in areas with many blending layers. This can harm performance. Also the order-dependency can make using alpha blending in a 3D scene complex or impossible. It may make more sense to use an off-screen render pass (see Graphics.GL.Low.Framebuffer) and an appropriate shader to simulate transparency effects.

module Main where

import Control.Monad.Loops (whileM_)
import Data.Functor ((<$>))
import qualified Data.Vector.Storable as V
import Control.Concurrent.STM

import qualified Graphics.UI.GLFW as GLFW
import Linear
import Graphics.GL.Low

main = do
  GLFW.init
  GLFW.windowHint (GLFW.WindowHint'ContextVersionMajor 3)
  GLFW.windowHint (GLFW.WindowHint'ContextVersionMinor 2)
  GLFW.windowHint (GLFW.WindowHint'OpenGLForwardCompat True)
  GLFW.windowHint (GLFW.WindowHint'OpenGLProfile GLFW.OpenGLProfile'Core)
  mwin <- GLFW.createWindow 640 480 "Blending" Nothing Nothing
  case mwin of
    Nothing  -> putStrLn "createWindow failed"
    Just win -> do
      GLFW.makeContextCurrent (Just win)
      GLFW.swapInterval 1
      shouldSwap <- newTVarIO False
      (GLFW.setKeyCallback win . Just)
        (_ _ _ _ _ -> atomically (modifyTVar shouldSwap not))
      (vao, prog) <- setup
      whileM_ (not <$> GLFW.windowShouldClose win) $ do
        GLFW.pollEvents
        draw vao prog shouldSwap
        GLFW.swapBuffers win

setup = do
  vao <- newVAO
  bindVAO vao
  vsource <- readFile "blending.vert"
  fsource <- readFile "blending.frag"
  prog <- newProgram vsource fsource
  useProgram prog
  let blob = V.fromList
        [ -0.5,  0.5
        ,  0.5,    0
        , -0.5, -0.5 ] :: V.Vector Float
  vbo <- newVBO blob StaticDraw
  bindVBO vbo
  setVertexLayout [Attrib "position" 2 GLFloat]
  enableBlending basicBlending
  return (vao, prog)

draw vao prog shouldSwap = do
  clearColorBuffer (0,0,0)
  yes <- readTVarIO shouldSwap
  if yes
    then sequence [drawRed, drawGreen]
    else sequence [drawGreen, drawRed]

drawGreen = do
  setUniform3f "color" [V3 0 1 0]
  setUniform1f "alpha" [0.5]
  setUniform44 "move" [eye4]
  drawTriangles 3

drawRed = do
  let ninety = pi/2
  let move = mkTransformation (axisAngle (V3 0 0 1) ninety) (V3 0.25 0.5 0)
  setUniform3f "color" [V3 1 0 0]
  setUniform1f "alpha" [0.5]
  setUniform44 "move" [transpose move]
  drawTriangles 3

blending.vert

#version 150

in vec3 Color;
in float Alpha;
out vec4 outColor;

void main()
{
    outColor = vec4(Color, Alpha);
}

blending.frag

#version 150

uniform vec3 color;
uniform float alpha;
uniform mat4 move;

in vec2 position;
out vec3 Color;
out float Alpha;

void main()
{
    gl_Position = move * vec4(position, 0.0, 1.0);
    Color = color;
    Alpha = alpha;
}
