Graphics.GL.Low.Texture

Documentation

Textures are objects that contain image data that can be sampled by a shader. While an obvious application of this is texture mapping, there are many other uses for textures (the image data doesn't have to be an image at all, it can represent anything).

Each sampler uniform in your shader points to a texture unit (zero by default). This texture unit is where it will read texture data from. To assign a texture to a texture unit, use setActiveTextureUnit then bind a texture. This will not only bind it to the relevant texture binding target but also to the active texture unit. You can change which unit a sampler points to by setting it using the setUniform1i command. You can avoid dealing with active texture units if theres only one sampler because the default unit is zero.

newTexture2D :: (MonadIO m, Storable a, InternalFormat b) => Vector a -> Dimensions -> m (Tex2D b)

Create a new 2D texture from a blob and its dimensions. Dimensions should be powers of two. The internal format type determines how the data is interpreted.

newCubeMap :: (MonadIO m, Storable a, InternalFormat b) => Cube (Vector a, Dimensions) -> m (CubeMap b)

Create a new cube map texture from six blobs and their respective dimensions. Dimensions should be powers of two.

newEmptyTexture2D :: (MonadIO m, InternalFormat a) => Int -> Int -> m (Tex2D a)

Create an empty texture with the specified dimensions and format.

newEmptyCubeMap :: (MonadIO m, InternalFormat a) => Int -> Int -> m (CubeMap a)

Create a cubemap texture where each of the six sides has the specified dimensions and format.

deleteTexture :: (MonadIO m, Texture a) => a -> m ()

Delete a texture.

bindTexture2D :: MonadIO m => Tex2D a -> m ()

Bind a 2D texture to the 2D texture binding target and the currently active texture unit.

bindTextureCubeMap :: MonadIO m => CubeMap a -> m ()

Bind a cubemap texture to the cubemap texture binding target and the currently active texture unit.

setActiveTextureUnit :: (MonadIO m, Enum a) => a -> m ()

Set the active texture unit. The default is zero.

setTex2DFiltering :: MonadIO m => Filtering -> m ()

Set the filtering for the 2D texture currently bound to the 2D texture binding target.

setCubeMapFiltering :: MonadIO m => Filtering -> m ()

Set the filtering for the cubemap texture currently bound to the cubemap texture binding target.

setTex2DWrapping :: MonadIO m => Wrapping -> m ()

Set the wrapping mode for the 2D texture currently bound to the 2D texture binding target.

setCubeMapWrapping :: MonadIO m => Wrapping -> m ()

Set the wrapping mode for the cubemap texture currently bound to the cubemap texture binding target. Because no blending occurs between cube faces you probably want ClampToEdge.

data Tex2D a

A 2D texture. A program can sample a texture if it has been bound to the appropriate texture unit.

Instances

Eq (Tex2D a)

Data a => Data (Tex2D a)

Ord (Tex2D a)

Read (Tex2D a)

Show (Tex2D a)

Storable (Tex2D a)

GLObject (Tex2D a)

Texture (Tex2D a)

data CubeMap a

A cubemap texture is just six 2D textures. A program can sample a cubemap texture if it has been bound to the appropriate texture unit.

Instances

Eq (CubeMap a)

Data a => Data (CubeMap a)

Ord (CubeMap a)

Read (CubeMap a)

Show (CubeMap a)

Storable (CubeMap a)

GLObject (CubeMap a)

Texture (CubeMap a)

data Filtering

Texture filtering modes.

Constructors

Nearest

No interpolation.

Linear

Linear interpolation.

Instances

Show Filtering

ToGL Filtering

data Wrapping

Texture wrapping modes.

Constructors

Repeat

Tile the texture past the boundary.

MirroredRepeat

Tile the texture but mirror every other tile.

ClampToEdge

Use the edge color for anything past the boundary.

Instances

Show Wrapping

ToGL Wrapping

data Dimensions

The size of an image in pixels.

Constructors

Dimensions

Fields

imageWidth :: Int

imageHeight :: Int

Instances

Show Dimensions

Example

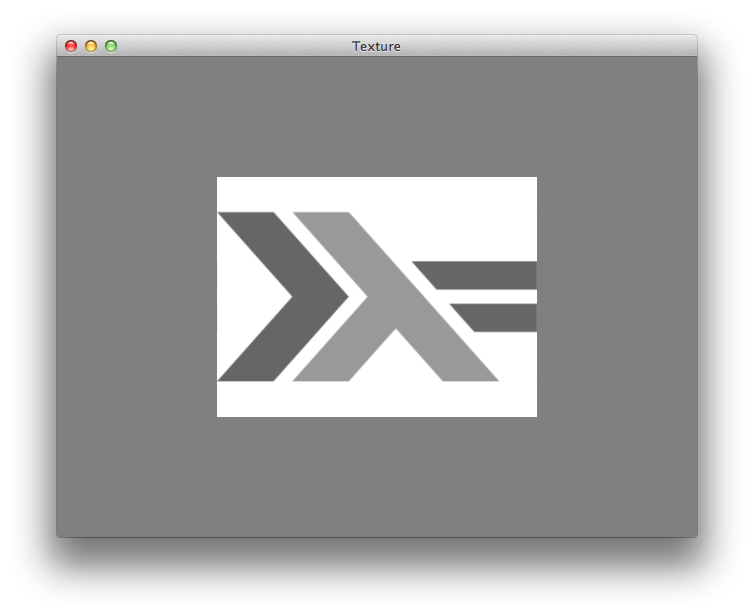

This example loads a 256x256 PNG file with JuicyPixels and displays the image on a square. Of course without a correction for aspect ratio the square will only be square if you adjust your window to be square.

module Main where

import Control.Monad.Loops (whileM_)
import Data.Functor ((<$>))
import qualified Data.Vector.Storable as V
import Codec.Picture
import Data.Word

import qualified Graphics.UI.GLFW as GLFW
import Linear
import Graphics.GL.Low

main = do
  GLFW.init
  GLFW.windowHint (GLFW.WindowHint'ContextVersionMajor 3)
  GLFW.windowHint (GLFW.WindowHint'ContextVersionMinor 2)
  GLFW.windowHint (GLFW.WindowHint'OpenGLForwardCompat True)
  GLFW.windowHint (GLFW.WindowHint'OpenGLProfile GLFW.OpenGLProfile'Core)
  mwin <- GLFW.createWindow 640 480 "Texture" Nothing Nothing
  case mwin of
    Nothing  -> putStrLn "createWindow failed"
    Just win -> do
      GLFW.makeContextCurrent (Just win)
      GLFW.swapInterval 1
      (vao, prog, texture) <- setup
      whileM_ (not <$> GLFW.windowShouldClose win) $ do
        GLFW.pollEvents
        draw vao prog texture
        GLFW.swapBuffers win

setup = do
  -- establish a VAO
  vao <- newVAO
  bindVAO vao
  -- load the shader
  vsource <- readFile "texture.vert"
  fsource <- readFile "texture.frag"
  prog <- newProgram vsource fsource
  useProgram prog
  -- load the vertices
  let blob = V.fromList -- a quad has four vertices
        [ -0.5, -0.5, 0, 1
        , -0.5,  0.5, 0, 0
        ,  0.5, -0.5, 1, 1
        ,  0.5,  0.5, 1, 0 ] :: V.Vector Float
  vbo <- newVBO blob StaticDraw
  bindVBO vbo
  setVertexLayout [ Attrib "position" 2 GLFloat
                  , Attrib "texcoord" 2 GLFloat ]
  -- load the element array to draw a quad with two triangles
  indices <- newElementArray (V.fromList [0,1,2,3,2,1] :: V.Vector Word8) StaticDraw
  bindElementArray indices
  -- load the texture with JuicyPixels
  let fromRight (Right x) = x
  ImageRGBA8 (Image w h image) <- fromRight <$> readImage "logo.png"
  texture <- newTexture2D image (Dimensions w h) :: IO (Tex2D RGBA)
  setTex2DFiltering Linear
  return (vao, prog, texture)

draw vao prog texture = do
  clearColorBuffer (0.5, 0.5, 0.5)
  bindVAO vao
  useProgram prog
  bindTexture2D texture
  drawIndexedTriangles 6 UByteIndices

The vertex shader for this example looks like

#version 150
in vec2 position;
in vec2 texcoord;
out vec2 Texcoord;
void main()
{
    gl_Position = vec4(position, 0.0, 1.0);
    Texcoord = texcoord;
}

And the fragment shader looks like

#version 150
in vec2 Texcoord;
out vec4 outColor;
uniform sampler2D tex;
void main()
{
  outColor = texture(tex, Texcoord);
}
