Reanimate

Reanimate is an animation library based on SVGs. It is designed to act like glue between external components such as latex, ffmpeg, gnuplot, diagrams, and povray.

Driver

Reanimate features a web-based viewer which is opened by default if no other parameters are given. Key features:

• This viewer listens for changes to the source file and recompiles the code automatically as needed.
• Animations are rendered with increasing fidelity until the frame rate reaches 60 fps.
• Key commands for pausing, frame stepping, forward/rewind. To pause press SPACE, to move -1/+1/-10/+10 frames use LEFT/RIGHT/DOWN/UP arrow keys.

reanimate :: Animation -> IO ()

Main entry-point for accessing an animation. Creates a program that takes the following command-line arguments:

Usage: PROG [COMMAND]
  This program contains an animation which can either be viewed in a web-browser
  or rendered to disk.

Available options:
  -h,--help                Show this help text

Available commands:
  check                    Run a system's diagnostic and report any missing
                           external dependencies.
  view                     Play animation in browser window.
  render                   Render animation to file.

Neither the check nor the view command take any additional arguments. Rendering animation can be controlled with these arguments:

Usage: PROG render [-o|--target FILE] [--fps FPS] [-w|--width PIXELS]
                   [-h|--height PIXELS] [--compile] [--format FMT]
                   [--preset TYPE]
  Render animation to file.

Available options:
  -o,--target FILE         Write output to FILE
  --fps FPS                Set frames per second.
  -w,--width PIXELS        Set video width.
  -h,--height PIXELS       Set video height.
  --compile                Compile source code before rendering.
  --format FMT             Video format: mp4, gif, webm
  --preset TYPE            Parameter presets: youtube, gif, quick
  -h,--help                Show this help text

Animations

type SVG = Tree

type Time = Double

Time signal. Goes from 0 to 1, inclusive.

data Animation

Animations are SVGs over a finite time.

Constructors

Animation Duration (Time -> SVG)

mkAnimation :: Duration -> (Time -> SVG) -> Animation

animate :: (Time -> SVG) -> Animation

Construct an animation with a duration of 1.

staticFrame :: Duration -> SVG -> Animation

Create an animation with provided duration, which consists of stationary frame displayed for its entire duration.

duration :: Animation -> Duration

Query the duration of an animation.

frameAt :: Time -> Animation -> SVG

Calculate the frame that would be displayed at given point in time of running animation.

The provided time parameter is clamped between 0 and animation duration.

Composition

seqA :: Animation -> Animation -> Animation

Play animations in sequence. The lhs animation is removed after it has completed. New animation duration is 'duration lhs + duration rhs'.

Example:

drawBox `seqA` drawCircle

parA :: Animation -> Animation -> Animation

Play two animation concurrently. Shortest animation freezes on last frame. New animation duration is 'max (duration lhs) (duration rhs)'.

Example:

drawBox `parA` adjustDuration (*2) drawCircle

parLoopA :: Animation -> Animation -> Animation

Play two animation concurrently. Shortest animation loops. New animation duration is 'max (duration lhs) (duration rhs)'.

Example:

drawBox `parLoopA` adjustDuration (*2) drawCircle

parDropA :: Animation -> Animation -> Animation

Play two animation concurrently. Animations disappear after playing once. New animation duration is 'max (duration lhs) (duration rhs)'.

Example:

drawBox `parLoopA` adjustDuration (*2) drawCircle

pause :: Duration -> Animation

Empty animation (no SVG output) with a fixed duration.

Example:

pause 1 `seqA` drawProgress

andThen :: Animation -> Animation -> Animation

Play left animation and freeze on the last frame, then play the right animation. New duration is 'duration lhs + duration rhs'.

Example:

drawBox `andThen` drawCircle

mapA :: (SVG -> SVG) -> Animation -> Animation

Map over the SVG produced by an animation at every frame.

Example:

mapA (scale 0.5) drawCircle

pauseAtEnd :: Duration -> Animation -> Animation

Freeze the last frame for t seconds at the end of the animation.

Example:

pauseAtEnd 1 drawProgress

pauseAtBeginning :: Duration -> Animation -> Animation

Freeze the first frame for t seconds at the beginning of the animation.

Example:

pauseAtBeginning 1 drawProgress

pauseAround :: Duration -> Duration -> Animation -> Animation

Freeze the first and the last frame of the animation for a specified duration.

Example:

pauseAround 1 1 drawProgress

adjustDuration :: (Duration -> Duration) -> Animation -> Animation

Change the duration of an animation. Animates are stretched or squished (rather than truncated) to fit the new duration.

setDuration :: Duration -> Animation -> Animation

Set the duration of an animation by adjusting its playback rate. The animation is still played from start to finish without being cropped.

reverseA :: Animation -> Animation

Play an animation in reverse. Duration remains unchanged. Shorthand for: signalA reverseS.

Example:

reverseA drawCircle

playThenReverseA :: Animation -> Animation

Play animation before playing it again in reverse. Duration is twice the duration of the input.

Example:

playThenReverseA drawCircle

repeatA :: Double -> Animation -> Animation

Loop animation n number of times. This number may be fractional and it may be less than 1. It must be greater than or equal to 0, though. New duration is n*duration input.

Example:

repeatA 1.5 drawCircle

freezeAtPercentage

Arguments

:: Time

value between 0 and 1. The frame displayed at this point in the original animation will be displayed for the duration of the new animation

-> Animation

original animation, from which the frame will be taken

-> Animation

new animation consisting of static frame displayed for the duration of the original animation

freezeAtPercentage time animation creates an animation consisting of stationary frame, that would be displayed in the provided animation at given time. The duration of the new animation is the same as the duration of provided animation.

addStatic :: SVG -> Animation -> Animation

Overlay animation on top of static SVG image.

Example:

addStatic (mkBackground "lightblue") drawCircle

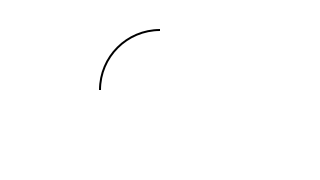

signalA :: Signal -> Animation -> Animation

Modify the time component of an animation. Animation duration is unchanged.

Example:

signalA (fromToS 0.25 0.75) drawCircle

Signals

type Signal = Double -> Double

Signals are time-varying variables. Signals can be composed using function composition.

constantS :: Double -> Signal

Constant signal.

Example:

signalA (constantS 0.5) drawProgress

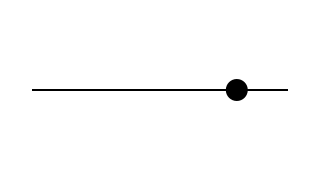

fromToS :: Double -> Double -> Signal

Signal with new starting and end values.

Example:

signalA (fromToS 0.8 0.2) drawProgress

reverseS :: Signal

Reverse signal order.

Example:

signalA reverseS drawProgress

curveS :: Double -> Signal

S-curve signal. Takes a steepness parameter. 2 is a good default.

Example:

signalA (curveS 2) drawProgress

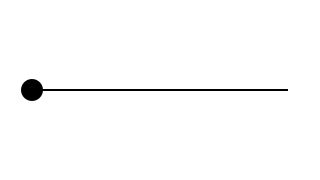

bellS :: Double -> Signal

Bell-curve signal. Takes a steepness parameter. 2 is a good default.

Example:

signalA (bellS 2) drawProgress

oscillateS :: Signal

Oscillate signal.

Example:

signalA oscillateS drawProgress

fromListS :: [(Double, Signal)] -> Signal

Scenes

(#) :: a -> (a -> b) -> b

data Scene s a

Instances

Monad (Scene s)

Defined in Reanimate.Scene

Methods

(>>=) :: Scene s a -> (a -> Scene s b) -> Scene s b

(>>) :: Scene s a -> Scene s b -> Scene s b

return :: a -> Scene s a

fail :: String -> Scene s a

Functor (Scene s)

Defined in Reanimate.Scene

Methods

fmap :: (a -> b) -> Scene s a -> Scene s b

(<$) :: a -> Scene s b -> Scene s a

MonadFix (Scene s)

Defined in Reanimate.Scene

Methods

mfix :: (a -> Scene s a) -> Scene s a

Applicative (Scene s)

Defined in Reanimate.Scene

Methods

pure :: a -> Scene s a

(<*>) :: Scene s (a -> b) -> Scene s a -> Scene s b

liftA2 :: (a -> b -> c) -> Scene s a -> Scene s b -> Scene s c

(*>) :: Scene s a -> Scene s b -> Scene s b

(<*) :: Scene s a -> Scene s b -> Scene s a

type ZIndex = Int

The ZIndex property specifies the stack order of sprites and animations. Elements with a higher ZIndex will be drawn on top of elements with a lower index.

sceneAnimation :: (forall s. Scene s a) -> Animation

play :: Animation -> Scene s ()

Play an animation once and then remove it. This advances the clock by the duration of the animation.

Example:

do play drawBox
   play drawCircle

fork :: Scene s a -> Scene s a

Execute actions in a scene without advancing the clock. Note that scenes do not end before all forked actions have completed.

Example:

do fork $ play drawBox
   play drawCircle

queryNow :: Scene s Time

Query the current clock timestamp.

Example:

do now <- play drawCircle *> queryNow
   play $ staticFrame 1 $ scale 2 $ withStrokeWidth 0.05 $
     mkText $ "Now=" <> T.pack (show now)

wait :: Duration -> Scene s ()

Advance the clock by a given number of seconds.

Example:

do fork $ play drawBox
   wait 1
   play drawCircle

waitUntil :: Time -> Scene s ()

Wait until the clock is equal to the given timestamp.

waitOn :: Scene s a -> Scene s a

Wait until all forked and sequential animations have finished.

Example:

do waitOn $ fork $ play drawBox
   play drawCircle

adjustZ :: (ZIndex -> ZIndex) -> Scene s a -> Scene s a

Change the ZIndex of a scene.

withSceneDuration :: Scene s () -> Scene s Duration

Query the duration of a scene.

Variables

data Var s a

Time dependent variable.

newVar :: a -> Scene s (Var s a)

Create a new variable with a default value. Variables always have a defined value even if they are read at a timestamp that is earlier than when the variable was created. For example:

do v <- fork (wait 10 >> newVar 0) -- Create a variable at timestamp '10'.
   readVar v                       -- Read the variable at timestamp '0'.
                                   -- The value of the variable will be '0'.

readVar :: Var s a -> Scene s a

Read the value of a variable at the current timestamp.

writeVar :: Var s a -> a -> Scene s ()

Write the value of a variable at the current timestamp.

Example:

do v <- newVar 0
   newSprite $ mkCircle <$> unVar v
   writeVar v 1; wait 1
   writeVar v 2; wait 1
   writeVar v 3; wait 1

modifyVar :: Var s a -> (a -> a) -> Scene s ()

Modify the value of a variable at the current timestamp and all future timestamps.

tweenVar :: Var s a -> Duration -> (a -> Time -> a) -> Scene s ()

Modify a variable between now and now+duration. Note: The modification function is invoked for past timestamps (with a time value of 0) and for timestamps after now+duration (with a time value of 1). See tweenVarUnclamped.

tweenVarUnclamped :: Var s a -> Duration -> (a -> Time -> a) -> Scene s ()

Modify a variable between now and now+duration. Note: The modification function is invoked for past timestamps (with a negative time value) and for timestamps after now+duration (with a time value greater than 1).

simpleVar :: (a -> SVG) -> a -> Scene s (Var s a)

Create and render a variable. The rendering will be born at the current timestamp and will persist until the end of the scene.

Example:

do var <- simpleVar mkCircle 0
   tweenVar var 2 $ \val -> fromToS val (screenHeight/2)

findVar :: (a -> Bool) -> [Var s a] -> Scene s (Var s a)

Helper function for filtering variables.

Sprites

data Sprite s

Sprites are animations with a given time of birth as well as a time of death. They can be controlled using variables, tweening, and effects.

data Frame s a

Sprite frame generator. Generates frames over time in a stateful environment.

Instances

Functor (Frame s)

Defined in Reanimate.Scene

Methods

fmap :: (a -> b) -> Frame s a -> Frame s b

(<$) :: a -> Frame s b -> Frame s a

Applicative (Frame s)

Defined in Reanimate.Scene

Methods

pure :: a -> Frame s a

(<*>) :: Frame s (a -> b) -> Frame s a -> Frame s b

liftA2 :: (a -> b -> c) -> Frame s a -> Frame s b -> Frame s c

(*>) :: Frame s a -> Frame s b -> Frame s b

(<*) :: Frame s a -> Frame s b -> Frame s a

unVar :: Var s a -> Frame s a

Dereference a variable as a Sprite frame.

Example:

do v <- newVar 0
   newSprite $ mkCircle <$> unVar v
   tweenVar v 1 $ \val -> fromToS val 3
   tweenVar v 1 $ \val -> fromToS val 0

spriteT :: Frame s Time

Dereference seconds since sprite birth.

spriteDuration :: Frame s Duration

Dereference duration of the current sprite.

newSprite :: Frame s SVG -> Scene s (Sprite s)

Create new sprite defined by a frame generator. Unless otherwise specified using destroySprite, the sprite will die at the end of the scene.

Example:

do newSprite $ mkCircle <$> spriteT -- Circle sprite where radius=time.
   wait 2

newSpriteA :: Animation -> Scene s (Sprite s)

Create a new sprite from an animation. This advances the clock by the duration of the animation. Unless otherwise specified using destroySprite, the sprite will die at the end of the scene.

Note: If the scene doesn't end immediately after the duration of the animation, the animation will be stretched to match the lifetime of the sprite. See newSpriteA' and play.

Example:

do fork $ newSpriteA drawCircle
   play drawBox
   play $ reverseA drawBox

newSpriteA' :: Sync -> Animation -> Scene s (Sprite s)

Create a new sprite from an animation and specify the synchronization policy. This advances the clock by the duration of the animation.

Example:

do fork $ newSpriteA' SyncFreeze drawCircle
   play drawBox
   play $ reverseA drawBox

newSpriteSVG :: SVG -> Scene s (Sprite s)

Create a sprite from a static SVG image.

Example:

do newSpriteSVG $ mkBackground "lightblue"
   play drawCircle

destroySprite :: Sprite s -> Scene s ()

Destroy a sprite, preventing it from being rendered in the future of the scene. If destroySprite is invoked multiple times, the earliest time-of-death is used.

Example:

do s <- newSpriteSVG $ withFillOpacity 1 $ mkCircle 1
   fork $ wait 1 >> destroySprite s
   play drawBox

applyVar :: Var s a -> Sprite s -> (a -> SVG -> SVG) -> Scene s ()

Change the rendering of a sprite using data from a variable. If data from several variables is needed, use a frame generator instead.

Example:

do s <- fork $ newSpriteA drawBox
   v <- newVar 0
   applyVar v s rotate
   tweenVar v 2 $ \val -> fromToS val 90

spriteModify :: Sprite s -> Frame s ((SVG, ZIndex) -> (SVG, ZIndex)) -> Scene s ()

Low-level frame modifier.

spriteMap :: Sprite s -> (SVG -> SVG) -> Scene s ()

Map the SVG output of a sprite.

Example:

do s <- fork $ newSpriteA drawCircle
   wait 1
   spriteMap s flipYAxis

spriteTween :: Sprite s -> Duration -> (Double -> SVG -> SVG) -> Scene s ()

Modify the output of a sprite between now and now+duration.

Example:

do s <- fork $ newSpriteA drawCircle
   spriteTween s 1 $ \val -> translate (screenWidth*0.3*val) 0

spriteVar :: Sprite s -> a -> (a -> SVG -> SVG) -> Scene s (Var s a)

Create a new variable and apply it to a sprite.

Example:

do s <- fork $ newSpriteA drawBox
   v <- spriteVar s 0 rotate
   tweenVar v 2 $ \val -> fromToS val 90

spriteE :: Sprite s -> Effect -> Scene s ()

Apply an effect to a sprite.

Example:

do s <- fork $ newSpriteA drawCircle
   spriteE s $ overBeginning 1 fadeInE
   spriteE s $ overEnding 0.5 fadeOutE

spriteZ :: Sprite s -> ZIndex -> Scene s ()

Set new ZIndex of a sprite.

Example:

do s1 <- newSpriteSVG $ withFillOpacity 1 $ withFillColor "blue" $ mkCircle 3
   newSpriteSVG $ withFillOpacity 1 $ withFillColor "red" $ mkRect 8 3
   wait 1
   spriteZ s1 1
   wait 1

Effects

type Effect

Arguments

 = Duration

Duration of the effect (in seconds)

-> Time

Time elapsed from when the effect started (in seconds)

-> Tree

Image to be modified

-> Tree

Image after modification

An Effect represents a modification of a SVG Tree that can vary with time.

overBeginning

Arguments

:: Duration

Duration of the initial segment of the animation over which the Effect should be applied

-> Effect

The Effect to modify

-> Effect

Effect which will only affect the initial segment of the animation

Modify the effect so that it only applies to the initial part of the animation.

overEnding

Arguments

:: Duration

Duration of the ending segment of the animation over which the Effect should be applied

-> Effect

The Effect to modify

-> Effect

Effect which will only affect the ending segment of the animation

Modify the effect so that it only applies to the ending part of the animation.

overInterval

Arguments

:: Time

time after start of animation when the effect should start

-> Time

time after start of the animation when the effect should finish

-> Effect

The Effect to modify

-> Effect

Effect which will only affect the specified interval within the animation

Modify the effect so that it only applies within given interval of animation's running time.

reverseE :: Effect -> Effect

reverseE effect starts where the effect ends and vice versa.

delayE :: Duration -> Effect -> Effect

Delay the effect so that it only starts after specified duration and then runs till the end of animation.

applyE :: Effect -> Animation -> Animation

Modify the animation by applying the effect. If desired, you can apply multiple effects to single animation by calling this function multiple times.

constE :: (Tree -> Tree) -> Effect

Build an effect from an image-modifying function. This effect does not change as time passes.

fadeInE :: Effect

Change image opacity from 0 to 1.

fadeOutE :: Effect

Change image opacity from 1 to 0. Reverse of fadeInE.

fadeLineInE :: Double -> Effect

Change stroke width from 0 to given value.

fadeLineOutE :: Double -> Effect

Change stroke width from given value to 0. Reverse of fadeLineInE.

drawInE :: Effect

Effect of progressively drawing the image. Note that this will only affect primitive shapes (see pathify).

drawOutE :: Effect

Reverse of drawInE.

fillInE :: Effect

Change fill opacity from 0 to 1.

scaleE :: Double -> Effect

Change scale from 1 to given value.

translateE :: Double -> Double -> Effect

Move the image from its current position to the target x y coordinates.

aroundCenterE :: Effect -> Effect

Transform the effect so that the image passed to the effect's image-modifying function has coordinates (0, 0) shifted to the center of its bounding box. Also see aroundCenter.

SVG

module Reanimate.Svg.Constructors

module Reanimate.Svg.LineCommand

module Reanimate.Svg.BoundingBox

module Reanimate.Svg

Raster data

embedImage :: PngSavable a => Image a -> Tree

embedDynamicImage :: DynamicImage -> Tree

embedPng :: Double -> Double -> ByteString -> Tree

raster :: Tree -> DynamicImage

svgAsPngFile :: Tree -> FilePath

vectorize :: FilePath -> Tree

vectorize_ :: [String] -> FilePath -> Tree

External SVG providers

latex :: Text -> Tree

Invoke latex and import the result as an SVG object. SVG objects are cached to improve performance.

Example:

latex "$e^{i\\pi}+1=0$"

latexAlign :: Text -> Tree

Invoke latex and import the result as an SVG object. SVG objects are cached to improve performance. This wraps the TeX code in an 'align*' context.

Example:

latexAlign "R = \\frac{{\\Delta x}}{{kA}}"

xelatex :: Text -> Tree

Invoke xelatex and import the result as an SVG object. SVG objects are cached to improve performance. Xelatex has support for non-western scripts.

Example:

xelatex "中文"

External 3D renderers

povray :: [String] -> Text -> Tree

povray' :: [String] -> Text -> FilePath

blender :: Text -> SVG

blender' :: Text -> FilePath

Colormaps

turbo :: Double -> PixelRGB8

Given a number t in the range [0,1], returns the corresponding color from the “turbo” color scheme by Anton Mikhailov.

viridis :: Double -> PixelRGB8

Given a number t in the range [0,1], returns the corresponding color from the “viridis” perceptually-uniform color scheme designed by van der Walt, Smith and Firing for matplotlib, represented as an RGB string.

magma :: Double -> PixelRGB8

Given a number t in the range [0,1], returns the corresponding color from the “magma” perceptually-uniform color scheme designed by van der Walt and Smith for matplotlib, represented as an RGB string.

inferno :: Double -> PixelRGB8

Given a number t in the range [0,1], returns the corresponding color from the “inferno” perceptually-uniform color scheme designed by van der Walt and Smith for matplotlib, represented as an RGB string.

plasma :: Double -> PixelRGB8

Given a number t in the range [0,1], returns the corresponding color from the “plasma” perceptually-uniform color scheme designed by van der Walt and Smith for matplotlib, represented as an RGB string.

sinebow :: Double -> PixelRGB8

Given a number t in the range [0,1], returns the corresponding color from the “sinebow” color scheme by Jim Bumgardner and Charlie Loyd.

parula :: Double -> PixelRGB8

Parula is the default colormap for matlab.

cividis :: Double -> PixelRGB8

Given a number t in the range [0,1], returns the corresponding color from the “cividis” color vision deficiency-optimized color scheme designed by Nuñez, Anderton, and Renslow, represented as an RGB string.

jet :: Double -> PixelRGB8

Jet colormap. Used to be the default in matlab. Obsolete.

hsv :: Double -> PixelRGB8

hsv colormap. Goes from 0 degrees to 360 degrees.

hsvMatlab :: Double -> PixelRGB8

Matlab hsv colormap. Goes from 0 degrees to 330 degrees.

greyscale :: Double -> PixelRGB8

Greyscale colormap.

Constants

screenWidth :: Num a => a

screenHeight :: Num a => a

defaultDPI :: Dpi

defaultStrokeWidth :: Double

Parameters

pFPS :: FPS

pHeight :: Height

pWidth :: Width
